Products >> BOE LCD Video Wall >>

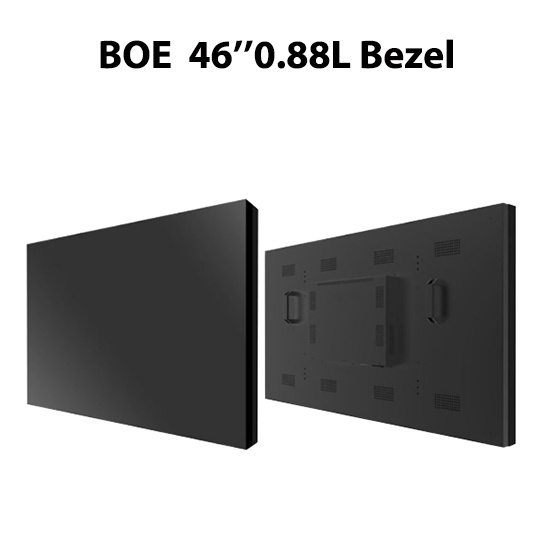

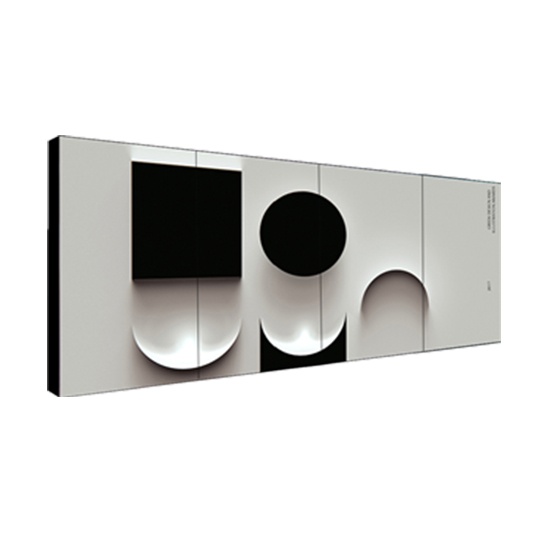

B46-0.88L LCD splicing screen
- Product No.：B46-0.88L
B46-0.88L
46 inch LCD splicing screen
Original BOE industrial grade IPS DID LCD panel
0.88mm extremely narrow splicing seam
Dense LED light source backlight system
Automatically adjust backlight brightness
Large perspective design
Continuous work for over 60000 hours, 3D dynamic noise reduction
Border compensation, height restoration of real images
Technical parameter
Diagonal size 46 inches
Splicing seam 0.88mm
Resolution 1920x 1080
Display height of 500 cd/m2
Point spacing 0.17675x0.53025 mm
Display area 1018.08 (H) x 572.67 (V) mm
Contrast 1200:1
Visual angle 178 ° (H)/178 ° (V)
Supports colors of 8bit-16.7M
Response time 8 ms
Service life >30000 (hours)
Power supply AC100-240V - (+/-10%), 50/60Hz
Power consumption ≤ 300W
Temperature 0 ° C-50
Humidity 10-80%
Overall dimensions 1018.96 x 573.55 x 112.38 mm
Total weight 20kg
46 inch LCD splicing screen
Original BOE industrial grade IPS DID LCD panel
0.88mm extremely narrow splicing seam
Dense LED light source backlight system
Automatically adjust backlight brightness
Large perspective design
Continuous work for over 60000 hours, 3D dynamic noise reduction
Border compensation, height restoration of real images
Technical parameter
Diagonal size 46 inches
Splicing seam 0.88mm
Resolution 1920x 1080
Display height of 500 cd/m2
Point spacing 0.17675x0.53025 mm
Display area 1018.08 (H) x 572.67 (V) mm
Contrast 1200:1
Visual angle 178 ° (H)/178 ° (V)
Supports colors of 8bit-16.7M
Response time 8 ms
Service life >30000 (hours)
Power supply AC100-240V - (+/-10%), 50/60Hz
Power consumption ≤ 300W
Temperature 0 ° C-50
Humidity 10-80%
Overall dimensions 1018.96 x 573.55 x 112.38 mm
Total weight 20kg
