1. Product Introduction

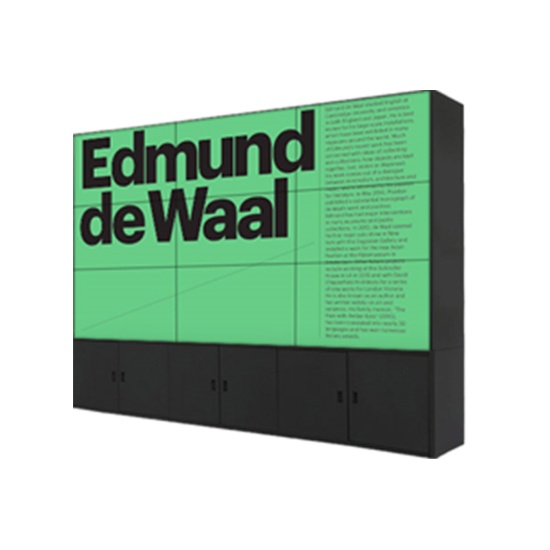

55" 0.88mm low brightness splicing unit, using BOE original ultra-narrow edge LCD splicing panel, its screen physical splicing only 3.5mm, using straight down LED backlight, display brightness more uniform, wider color gamut. Industrial-grade design, with high reliability and stability, the average trouble-free operation time of more than 30,000 hours. Rich interface, integrated VGA, DVI, HDMI, CVBS and other multiple video signal sources.

2. Product Features
Panel with ADSDS hard screen technology, large viewing angle, fast response time, high color reproduction, no water ripples when pressed.
Adopt direct down LED backlight mode, more uniform brightness performance.
1920×1080 physical resolution, more delicate picture quality performance.
1200:1 ultra-high contrast ratio, the picture display is more sharp, color performance is more outstanding;
178° viewing angle, tends to be horizontal.
500nit brightness design, to meet the needs of daily display brightness.
3.5mm ultra-narrow edge splicing, more perfect picture display.
Industrial-grade design, high reliability, high stability, support 7×24, average trouble-free operation time of more than 30,000 hours.
Front maintenance, floor and other installation methods for users to choose.

3.Specification parameters

Panel	Diagonal Dimension	55
	Brand	BOE
	Bezel to Bezel (mm)	0.88mm
	Luminance（nit）	500 nit
	Back Light	WLED
	Aspect Ratio	16:9
	Resolution	1920×1080
	Response Time（ms）	8ms
	Contrast Ratio	1200:1
	View Angle	H 178° V 178°
	Chromatic Number	16.7m
	Refresh Rate（Hz）	60hz
Structure	Display Size（H×V, mm）	1209.6×680.4mm
	Overall Dimensions（W×H×D, mm）	1213.7×684.5×112mm
	Net Weight（kg）	约 30KG
Power parameters	Input power supply	100-240V 50/60Hz
	Max. Power（W）	250W
	Standby Power Loss（W）	200W
Interface	Input Interface	DVI/HDMI/VGA/CVBS/USB/ RJ45/IR
	Output Interface	RJ45
	Communication Interface	RS232 input/output interface (interface type is RJ45), IR (φ3.5mm stereo) sound socket)
Environment	Operation Time（h）	7×24
	MTBF, h	30000 hour
	Operation temperature	0~40℃
	Operation humidity	20%~80% Non-condensing
	Storage temperature	-20℃~60℃
	Storage humidity	10%~80% Non-condensing
Installation	Cabinet	√
	Wall-mounted	√
